G50 5 Ports Fast Dual Band Gigabit WiFi Router

  • G50 5 Ports Fast Dual Band Gigabit WiFi Router
  • G50 5 Ports Fast Dual Band Gigabit WiFi Router
  • G50 5 Ports Fast Dual Band Gigabit WiFi Router
  • G50 5 Ports Fast Dual Band Gigabit WiFi Router
  • G50 5 Ports Fast Dual Band Gigabit WiFi Router
  • G50 5 Ports Fast Dual Band Gigabit WiFi Router
  • video
G50 5 Ports Fast Dual Band Gigabit WiFi Router
  • HOMTECS/OEM
  • CHINA
  • 3 DAYS FOR SAMPLES
  • 10000PCS/MONTH

5G/4G/3G/2G
Gigabit Ethernets
5 Ethernets, 5 LAN or 4 LAN + 1 WAN
VPN (PPTP / L2TP, IPSec, GRE, OpenVPN)
RS232 / RS485
WiFi optional
GPS optional
Dual SIM optional
Cloud management optional

G50 5 Ports Fast Dual Band Gigabit WiFi Router


Overview:

G50 5 Ports Fast Dual Band Gigabit WiFi Router is a kind of internet of things wireless communication router, use FDD/TDD-LTE 4G mobile broadband network type to provide convenient and high speed net transmission function.

G50 5 Ports Fast Dual Band Gigabit WiFi Router uses high performance industrial ARM Core A7 communication processor, flush bonding real-time operation system as software supporting platform, provide save, high speed, stable 4G wireless router net, G50 5 Ports Fast Dual Band Gigabit WiFi Router is a wireless router with 5 Gigabit Ethernet ports and communication serial port.

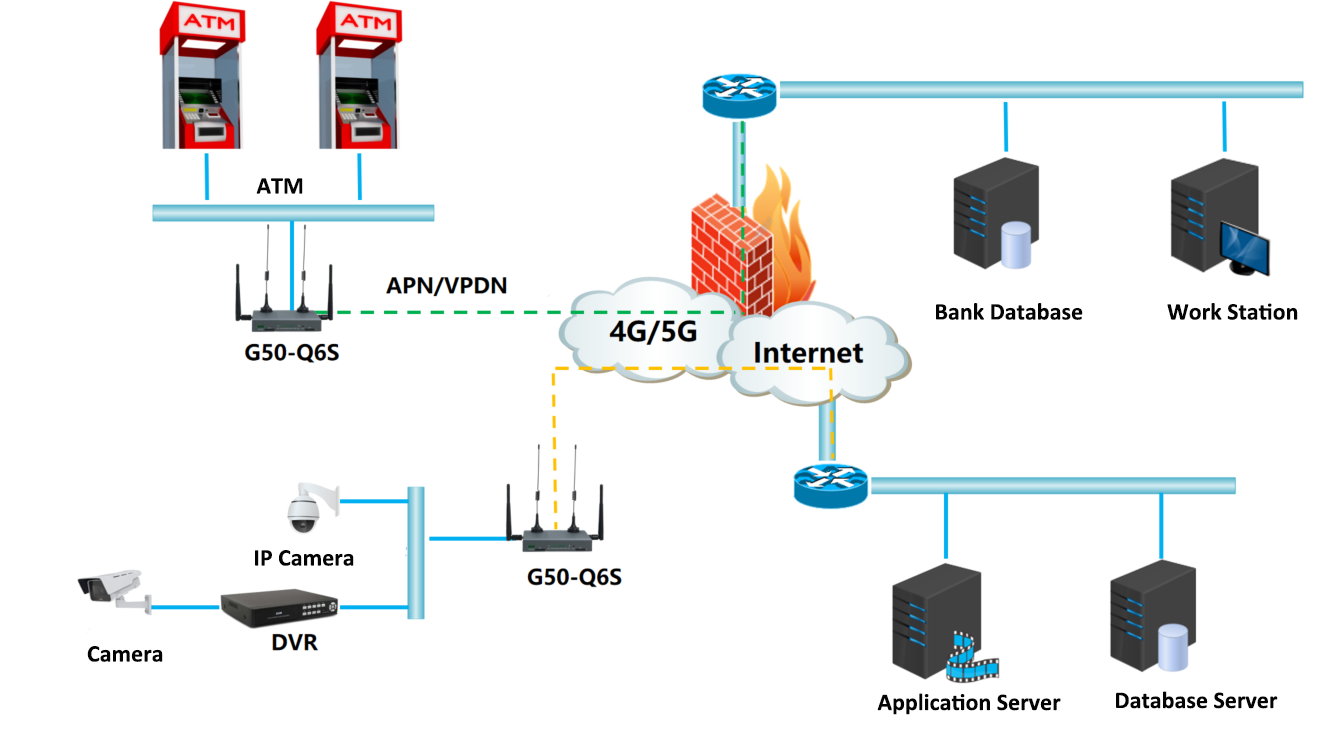

G50 5 Ports Fast Dual Band Gigabit WiFi Router can be used in ATM, POS, Vending, Kiosk, finance, postal, smart power grids, smart transportation, environment monitor, fire protection monitor, security, water conservancy, public safety, advertising release, industrial control, earth quake monitor, meteorological watch, instrument monitor.etc



Features:

Industrial robust design and compact metal housing

Strong electromagnetic interference Resistance, heat endurance and radiation ability

Support FDD/TDD-LTE 4G network, 3G and 2.5G backward compatible

Support multiple VPN (PPTP, L2TP, GPE, IPSec etc.)

Support multiple network protocol (ICMP, TCP, UDP, Telnet, SSH, HTTP, HTTPS etc.)

Support multiple functions (DHCP, DNS, DDNS, Firewall, NAT, DMZ host etc.)

2 Antenna interfaces, 1 GSM+ 1 Aux/Wi-Fi/GPS

5 Ethernets, 5 LAN or 4 LAN + 1 WAN

WAN port support PPPoE, static IP, DHCP client.

Built-in watch dog, Multi-link detection ensure working in stable and security way

Always online, reboot automatically if disconnected to ensure continual connection

Support APN and VPDN wireless private network access in

LCP/ICMP/flow/heartbeat check, ensure network usability

Web/CLI/SSH/Management platform support, easy configure

SNMP network management, NTP support

Local & remote management (configuration, status, upgrade firmware)

Supports Port forwarding and Bridge

Supports timing operation

Supports LED status indication

Shock and vibration resistant



Advanced:



MIMO Antenna for LTE 300Mbps optional

802.11b/g/n, ac Wi-Fi optional, 2.4G + 5G optional

Dual-redundancy between WAN links: Ethernet, 3G/4G and Wi-Fi backup

GPS capability optional for fleet management or other tracking application

DTU serial communication function optional (rs232/rs485)

OpenVPN Optional

PPTP Sever optional

AT command optional

Control by SMS optional

Schedule reboot optional

Customized and OEM/ODM acceptable



Specification

Cellular


4G(FDD LTE/TDD LTE)



AU: B1/B3/B5/B7/B8/B28, B40
EU: B1/B3/B7/B8/B20/B28/B31, B38/B40
US: B2/B4/B5/B13/B17/B25, B41
JP: B1/B3/B8/B9/B18/B19/B21/B28, B41
CN: B1/B3, B38/B39/B40/B41

3G(UMTS/WCDMA/HSDPA/HSUPA/HSPA+)



850/900/1900/2100 MHz

850/1900/2100 MHz

900/2100 MHz

2G(EDGE/GPRS/CDMA/EVDO)

850/900/1800/1900 MHz



Antenna Interface


Number of ports

1 or 2 (MAIN + AUX/WiFi/GPS)



SIM



1 or 2(3 V & 1.8 V)



Ethernet Interface


Number of ports

5 x 10/100/1000 Mbps, 5 LAN or 4 LAN + 1 WAN

Magnet isolation protection

1.5 KV



Serial Interface


Number of ports

1 x RS-232 or 1 x RS-485

Baud rate

300bps to 230400bps



Software


VPN tunnel

PPTP/L2TP, IPsec, GRE, OpenVPN

Firewall

DMZ, NAT, Filtering (IP/MAC/Port/Url/Access/Domain name)

Management

Web, CLI/Telnet Command, M2M management platform optional, SSH optional, SMS optional

Serial port

Transparent, TCP Client/Server, UDP, Modbus RTU



Others


Reset button

1 x RST

LED indicators

2 x NET, 4 x LAN, 1 x WAN, 1 x WLAN

Power

5 to 32 V DC(standard 12V/1.5A)

Power consumption

Idle: 180 mA@12 V

Data link: 300 mA (peak) @12 V

Housing & Weight

Metal(IP34), 500 g

Dimension

150 x 102 x 25.5 mm

Installation

Desktop, wall mounting and DIN rail mounting

Certification

CE, RoHs, FCC





Model reference:

Homtecs

G50 Series Industrial Cellular Router

Model

4G

3G

DL

UL

Interface

WiFi

GPS

G50-FA2T

FDD/TDD LTE

UMTS

150Mbps

50Mbps

5XLAN

1XRS232



G50-FA2T-W

FDD/TDD LTE

UMTS

150Mbps

50Mbps

5XLAN

1XRS232

Y


G50-FA2T-G

FDD/TDD

LTE

UMTS

150Mbps

50Mbps

5XLAN

1XRS232


Y

G50-FA2T-GW

FDD/TDD

LTE

UMTS

150Mbps

50Mbps

5XLAN

1XRS232

Y

Y

G50-FA4T

FDD/TDD LTE

UMTS

150Mbps

50Mbps

5XLAN

1XRS485



G50-FA4T-W

FDD/TDD

LTE

UMTS

150Mbps

50Mbps

5XLAN

1XRS485

Y


G50-FA4T-G

FDD/TDD

LTE

UMTS

150Mbps

50Mbps

5XLAN

1XRS485


Y

G50-FA4T-GW

FDD/TDD

LTE

UMTS

150Mbps

50Mbps

5XLAN

1XRS485

Y

Y

G50-WA2T


HSPA+

21Mbps

5.76Mbps

5XLAN

1XRS232



G50-WA2T-W


HSPA+

21Mbps

5.76Mbps

5XLAN

1XRS232

Y


G50-WA2T-G


HSPA+

21Mbps

5.76Mbps

5XLAN

1XRS232


Y

G50-WA2T-GW


HSPA+

21Mbps

5.76Mbps

5XLAN

1XRS232

Y

Y

G50-WA4T


HSPA+

21Mbps

5.76Mbps

5XLAN

1XRS485



G50-WA4T-W


HSPA+

21Mbps

5.76Mbps

1XLAN

5XRS485

Y


G50-WA4T-G


HSPA+

21Mbps

5.76Mbps

5XLAN

1XRS485


Y

G50-WA4T-GW


HSPA+

21Mbps

5.76Mbps

5XLAN

1XRS485

Y

Y

G50-FA2T-D

(Dual SIM)

FDD/TDD

LTE

UMTS

21Mbps

5.76Mbps

5XLAN



G50-WA2T-D

(Dual SIM)


HSPA+

21Mbps

5.76Mbps

5XLAN
