1 port router
- HOMTECS/OEM
- CHINA
- 3 DAYS FOR SAMPLES
- 10000PCS/MONTH
4G / 3G / 2G
1 Ehternets(1 LAN)
VPN(PPTP / L2TP, IPSec, GRE, OpenVPN)
GPS optional
RS232 / RS485 optional
Cloud management optional
H10 Rugged Industrial M2M Mini Metal Router
Overview:
H10 Rugged Industrial M2M Mini Metal Router is a kind of internet of things wireless communication router, use FDD/TDD-LTE 4G mobile broadband network type to provide convenient and high speed net transmission function.
H10 Rugged Industrial M2M Mini Metal Router uses high performance industrial 32 bit communication processor, flush bonding real-time operation system as software supporting platform, provide save, high speed, stable 4G wireless router net, H10 Rugged Industrial M2M Mini Metal Router with 1 Ethernet port RJ45 and communication serial port.
H10 Rugged Industrial M2M Mini Metal Router can be used in ATM, POS, Vending, Kiosk, finance, postal, smart power grids, smart transportation, environment monitor, fire protection monitor, security, water conservancy, public safety, advertising release, industrial control, earth quake monitor, meteorological watch, instrument monitor.etc
Applications:
ATM & Retail Transportation & Logistics Energy & Utilities Oil, Gas & Mining Industrial IoT Enterprise IT
|
|
Features:
Industrial robust design and compact metal housing
Strong electromagnetic interference Resistance, heat endurance and radiation ability
Support FDD/TDD-LTE 4G network, 3G and 2.5G backward compatible
Support multiple VPN (PPTP, L2TP, GPE, IPSec etc.)
Support multiple network protocol (ICMP, TCP, UDP, Telnet, SSH, HTTP, HTTPS etc.)
Support multiple functions (DHCP, DNS, DDNS, Firewall, NAT, DMZ host etc.)
1 Antenna interfaces, 1 GSM
1 Ethernets, 1 LAN
WAN port support PPPoE, static IP, DHCP client.
Built-in watch dog, Multi-link detection ensure working in stable and security way
Always online, reboot automatically if disconnected to ensure continual connection
Support APN and VPDN wireless private network access in
LCP/ICMP/flow/heartbeat check, ensure network usability
Web/CLI/SSH/Management platform support, easy configure
SNMP network management, NTP support
Local & remote management (configuration, status, upgrade firmware)
Supports Port forwarding and Bridge
Supports timing operation
Supports LED status indication
Shock and vibration resistant
Advanced:
MIMO Antenna for LTE 300Mbps optional
GPS capability optional for fleet management or other tracking application
DTU serial communication function optional (rs232/rs485)
OpenVPN Optional
PPTP Sever optional
AT command optional
Control by SMS optional
Schedule reboot optional
Customized and OEM/ODM acceptable
Specification
Cellular | |
4G(FDD LTE/TDD LTE)
| AU: B1/B3/B5/B7/B8/B28, B40 |
3G(UMTS/WCDMA/HSDPA/HSUPA/HSPA+)
| 850/900/1900/2100 MHz 850/1900/2100 MHz 900/2100 MHz |
2G(EDGE/GPRS/CDMA/EVDO) | 850/900/1800/1900 MHz |
Antenna Interface | |
Number of ports | 1 or 2 (MAIN + AUX/GPS) |
SIM | 1(3 V & 1.8 V) |
Ethernet Interface | |
Number of ports | 1 x 10/100 Mbps, 1 LAN |
Magnet isolation protection | 1.5 KV |
Serial Interface | |
Number of ports | 1 x RS-232 or 1 x RS-485 |
Baud rate | 300bps to 230400bps |
Software | |
VPN tunnel | PPTP/L2TP, IPsec, GRE, OpenVPN |
Firewall | DMZ, NAT, Filtering (IP/MAC/Port/Url/Access/Domain name) |
Management | Web, CLI/Telnet Command, M2M management platform optional, SSH optional, SMS optional |
Serial port | Transparent, TCP Client/Server, UDP, Modbus RTU |
Others | |
Reset button | 1 x RST |
LED indicators | 1 x NET, 1 x LAN, 1 x PWR |
Power | 5 to 32 V DC(standard 12V/1.5A) |
Power consumption | Idle: 100 mA@12 V Data link: 200 mA (peak) @12 V |
Housing & Weight | Metal(IP34), 300 g |
Dimension | 59 x 78.5 x 23.5 mm |
Installation | Desktop, wall mounting and DIN rail mounting |
Certification | CE, RoHs, FCC |
Interface:

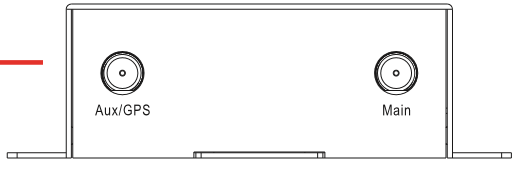

Front: | Description:
| |||||||||||||||||
Back:
|
Model reference:
Model | Frequency Bands | Country/Region | Interface | GPS | Package Contains |
H10-FA2T |
4G:
FDD-LT：Band1/3/5/7/8/20/28 TDD-LTE：Band38/39/40/41
3G: WCDMA/HSDPA/HSUPA/HSPA+: Band1/2/5/8 | Global | 1 x LAN 1 x RS-232 | × | 1 x H10 router
1 x Cellular antenna
1 x GPS antenna(optional)
1 x RJ45 cable
1 x 5-pin power connector
1 x 12V/1.5A Power supply
|
H10-FA2T-G | 1 x LAN 1 x RS-232 | √ | |||
H10-FA4T | 1 x LAN 1 x RS-485 | × | |||
H10-FA4T-G | 1 x LAN 1 x RS-485 | √ | |||
H10-WA2T | 1 x LAN 1 x RS-232 | × | |||
H10-WA2T-G | 1 x LAN 1 x RS-232 | √ | |||
H10-WA4T | 1 x LAN 1 x RS-485 | × | |||
H10-WA4T-G | 1 x LAN 1 x RS-485 | √ |
*For more information about frequency bands in different countries, please contact your Homtecs sales representative.
