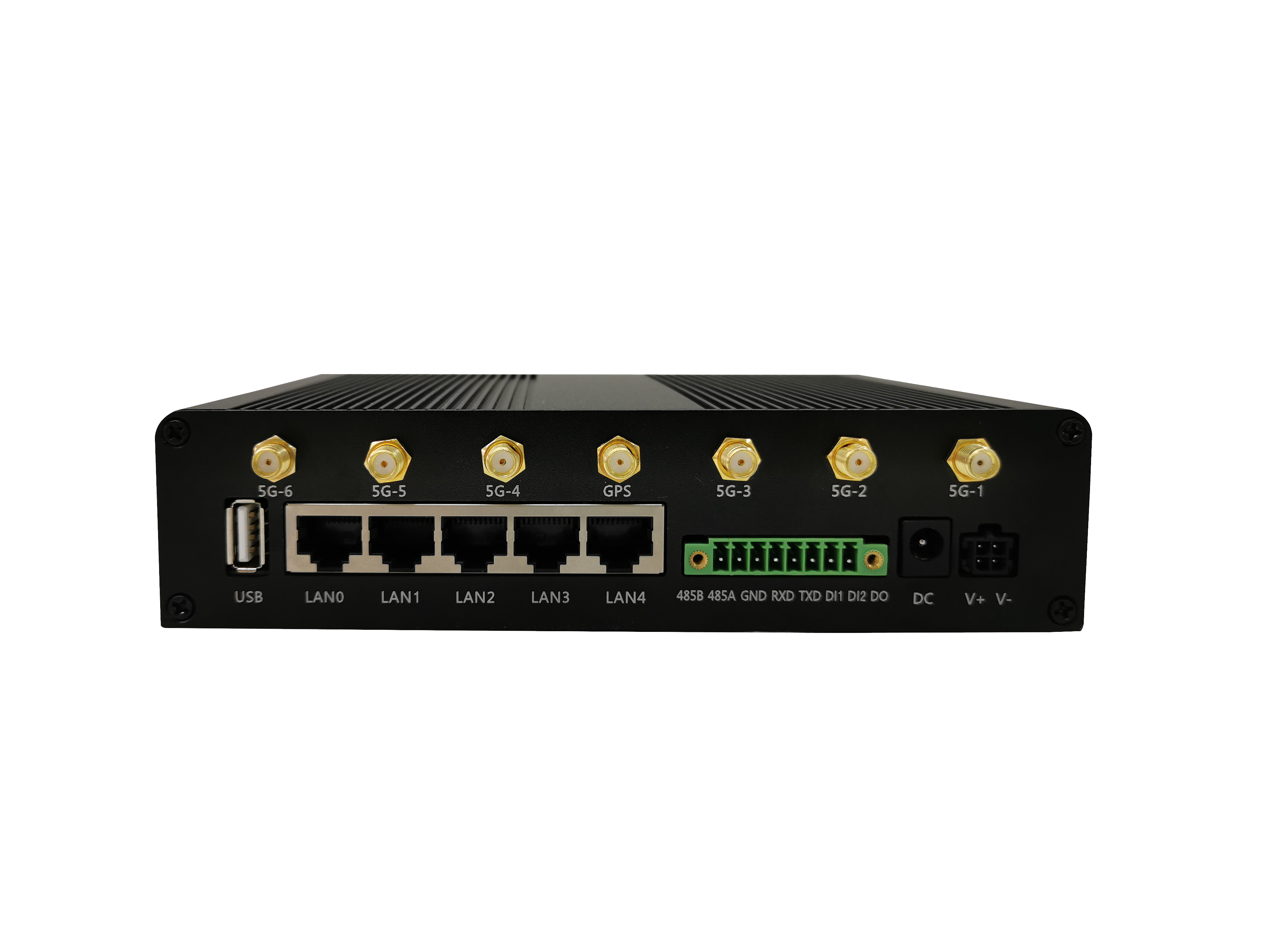

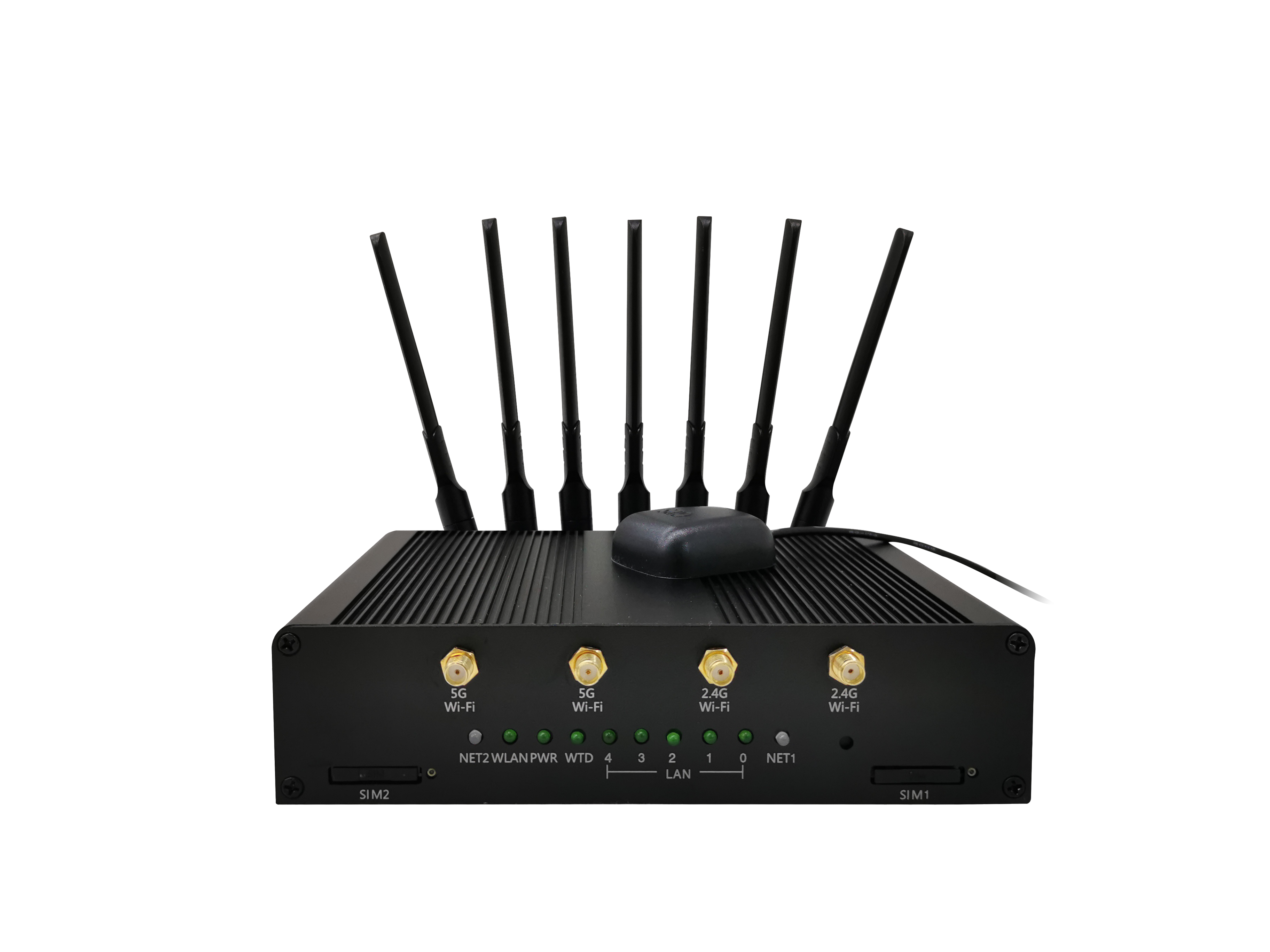

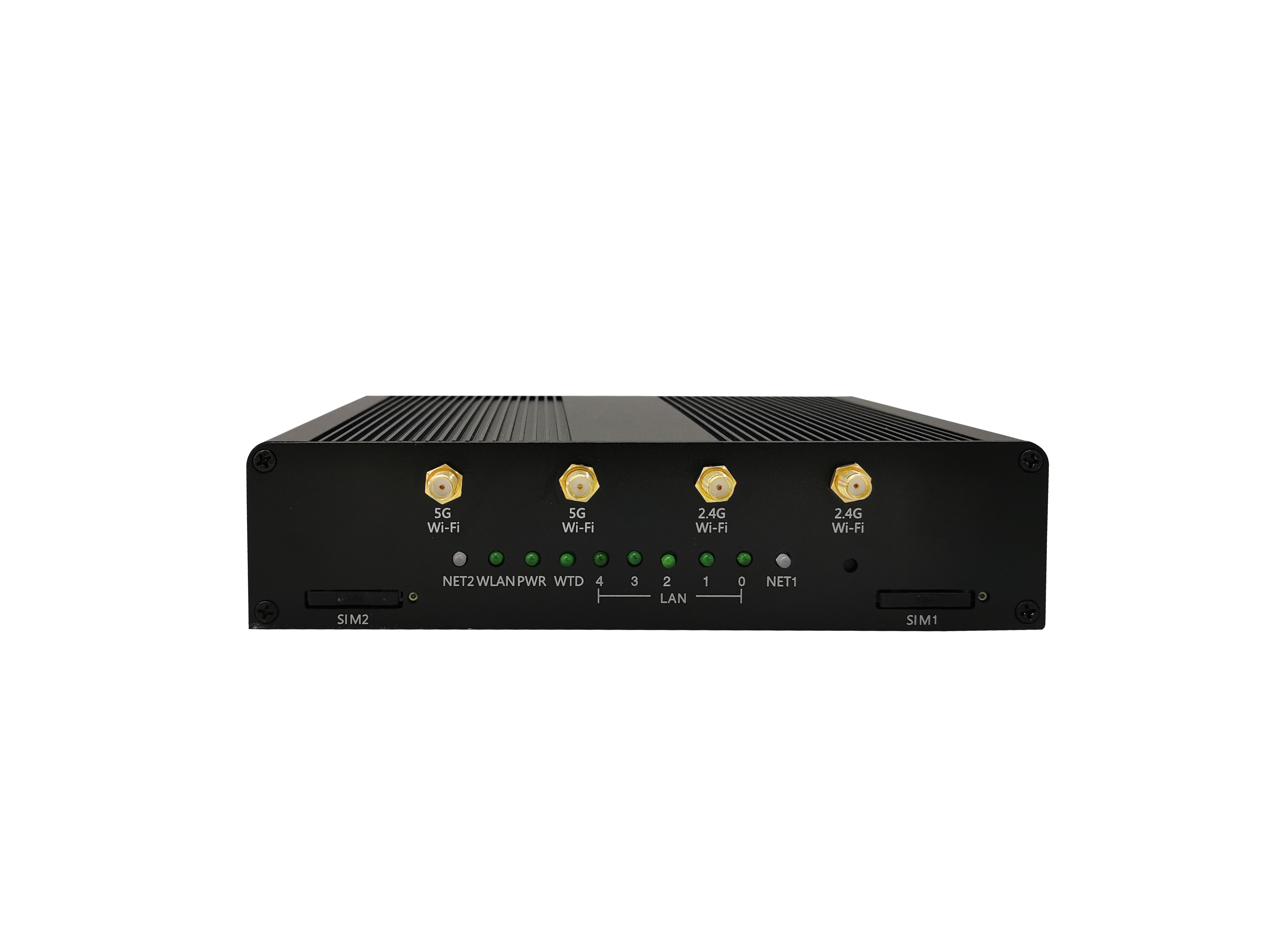

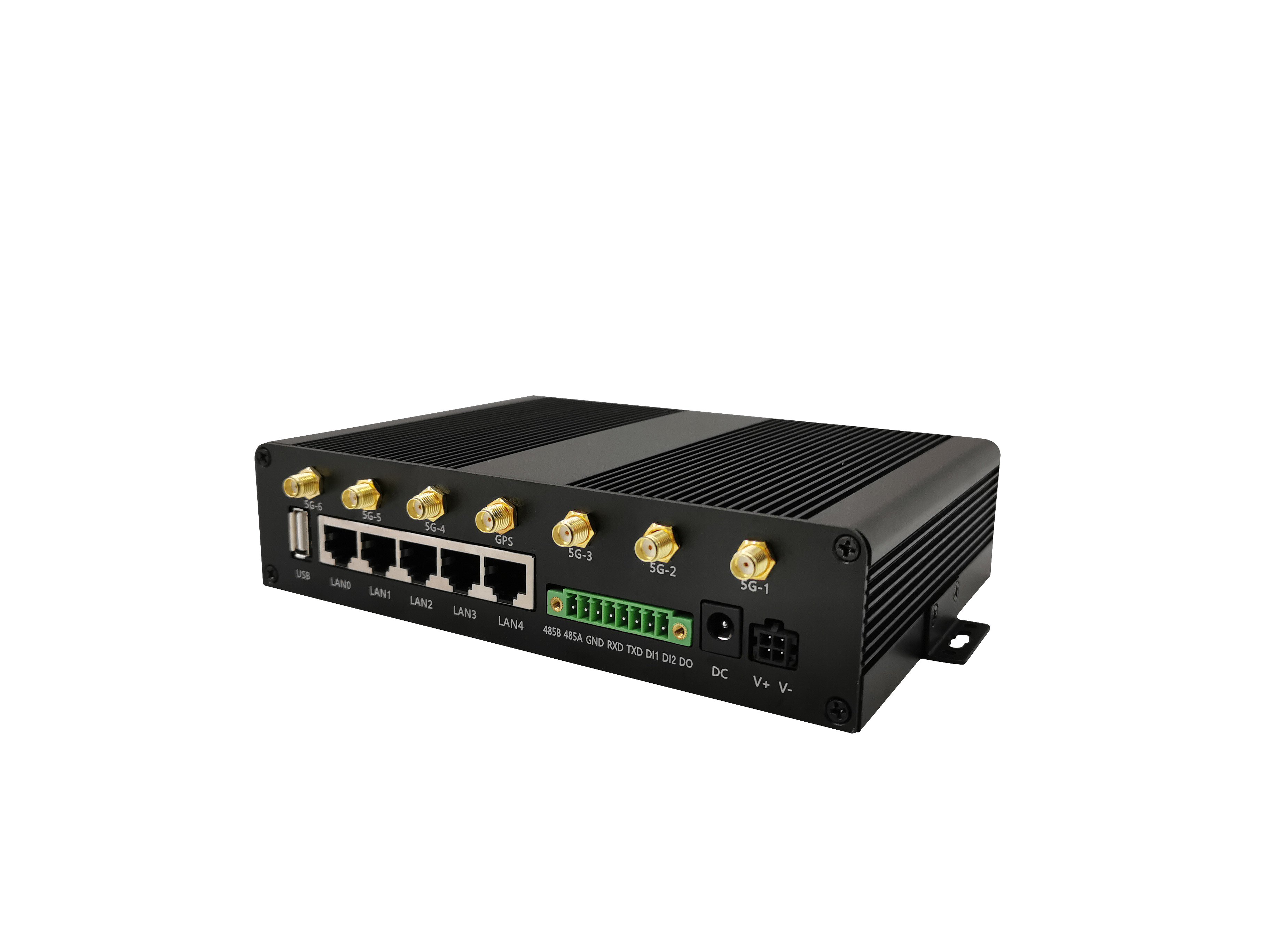

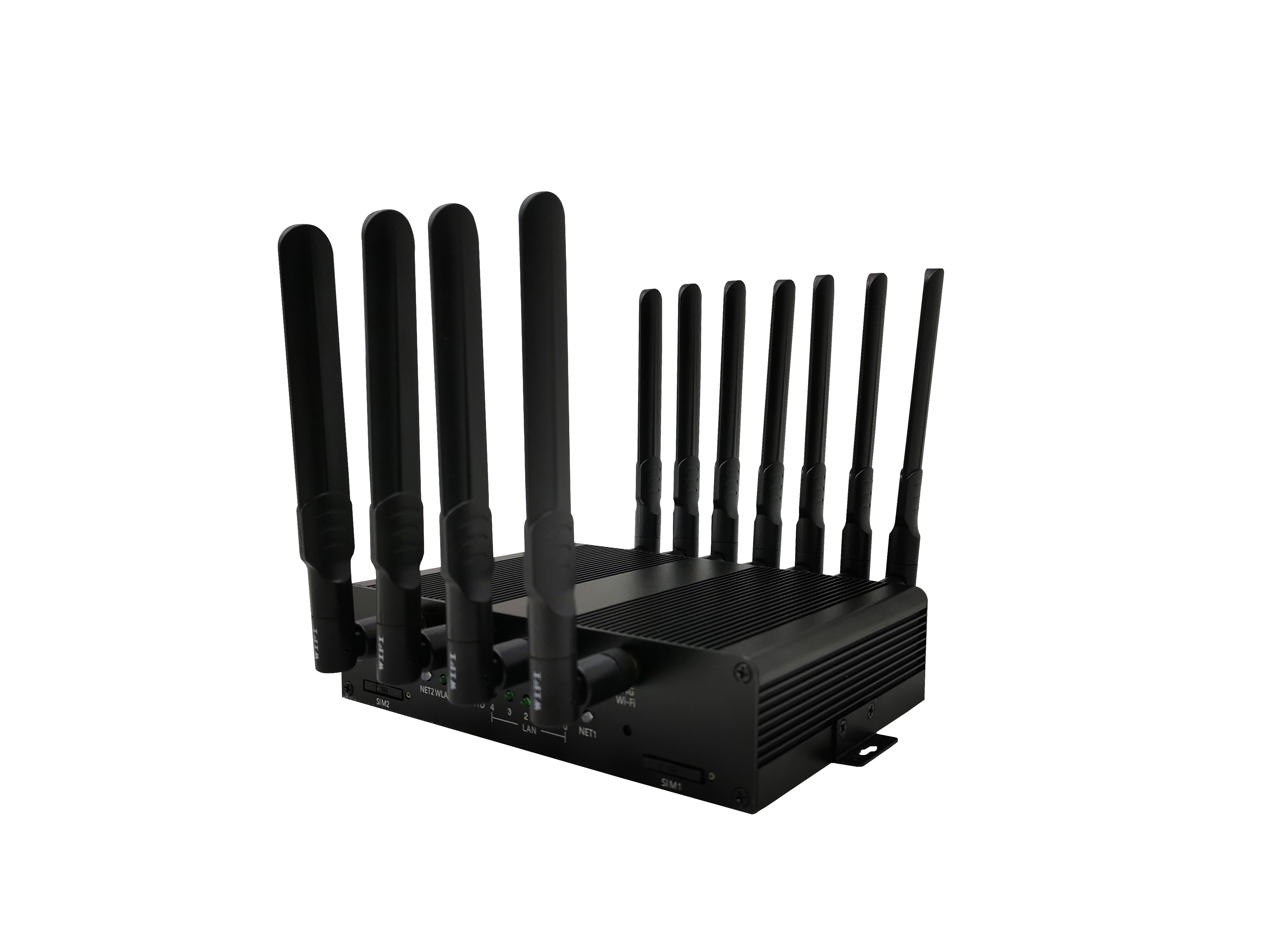

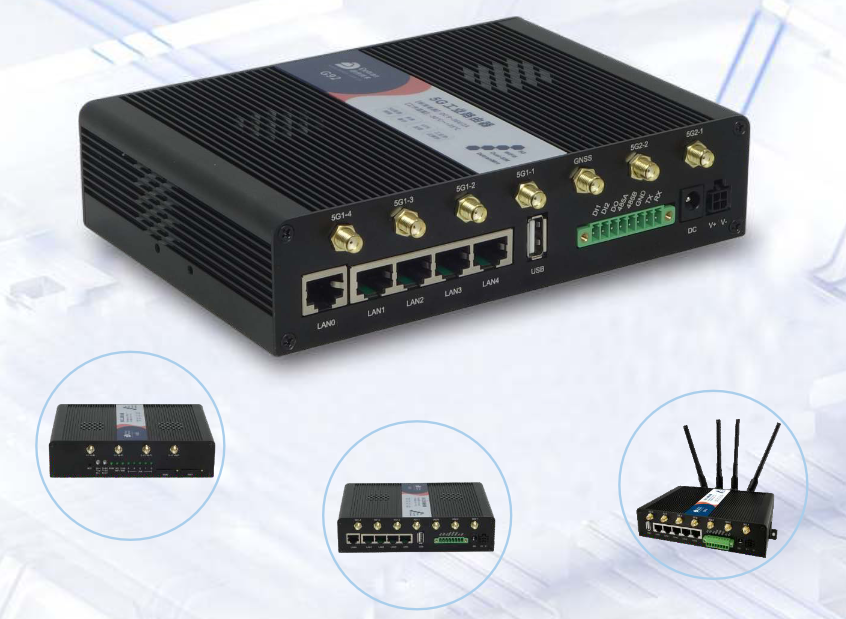

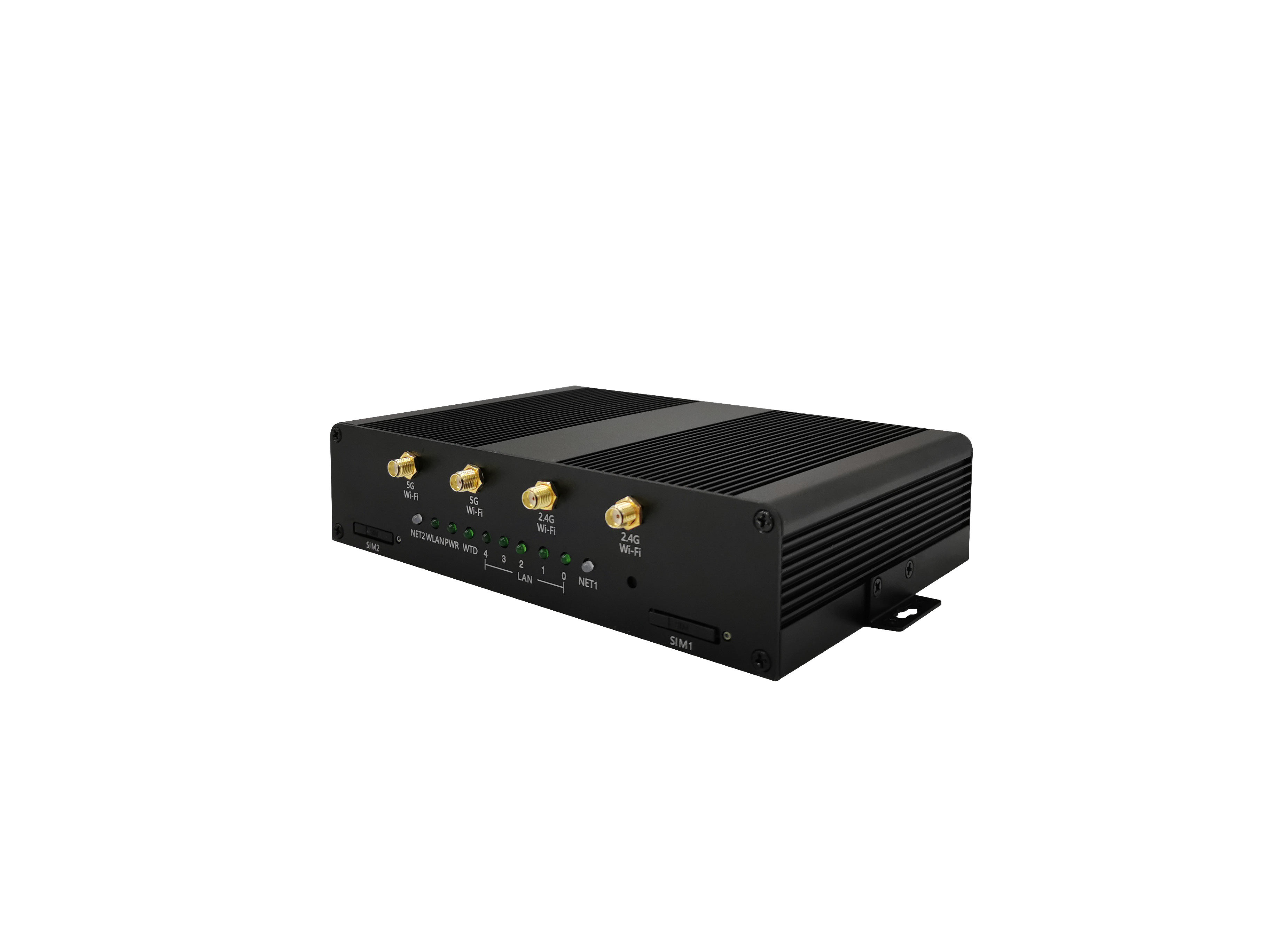

G92-Q6 4G LTE Dual Module Dual SIM GPS 2.4G and 5G Dual Bnad WiFi 5 port Gigabit Mobile Hotspot Wireless Router

HOMTECS-G92-Q6 4G LTE Dual Module Dual SIM GPS 2.4Gand 5G Dual Bnad WiFi 5 port Gigabit Mobile Hotspot Wireless Router

G92-Q6 4G LTE Dual Module Dual SIM GPS 2.4G and 5G Dual Bnad WiFi 5 port Gigabit Mobile Hotspot Wireless Router

Brand HOMTECS/OEM
Product origin SHENZHEN, CHINA
Delivery time 3 DAYS FOR SAMPLES
Supply capacity 10000PCS/MONTH

5G/4G/3G/2G
Gigabit Ethernets
5 Ethernets, 5 LAN or 4 LAN + 1 WAN
VPN (PPTP / L2TP, IPSec, GRE, OpenVPN)
RS232 + RS485
Dual Band WiFi(2.4G+5G)
Dual Module Dual SIM
GPS optional
Cloud management optional

Email

Download

G92-Q6 4G LTE Dual Module Dual SIM GPS 2.4G and 5G Dual Bnad WiFi 5 port Gigabit Mobile Hotspot Wireless Router

Overview:

G92-Q6 ARM Quad-core 5G 4G LTE Dual Module Dual SIM GPS 2.4G and 5G Dual Bnad WiFi 5 port Gigabit Mobile Hotspot Wirelessrouter is a kind of internet of things wireless communication router, uses Sub6 / LTE mobile cellular network, to provide convenient and high speed network transmission function.

This series of product uses high performance ARM Quad-Core industrial communication processor, flush bonding real-time operation system as software supporting platform. It provides secure, reliable, stable 5G wireless network, and provides 5 Gigabit LAN, RS-485 + RS-232, USB and dual band 2.4 G + 5.8G Wi-Fi6.

It can be used in finance, postal, smart power grids, smart transportation, environment monitor, fire protection monitor, security, water conservancy, public safety, advertising release, industrial control, earth quake monitor, meteorological watch, instrument monitor etc.

portable cellular router express vpn router 5G Global 5*LAN/4*LAN+1*WAN Deeply OpenWRT Multiple VPN Protocols

Features:

Industrial design

Use high performance industrial wireless module

Use high performance ARM Quad-Core industrial communication processor

Support low power consumption, including sleep mode, timing on/off line mode and timing switch on/off mode

Use plate metal CRS shell, heat dissipation is good

Power source: 12V~32V DC(extended to be 36V)

Degree of protection: IP34(Max IP51)

Network characteristic

Port flow detection and link real time monitoring

Various VPN protocols (PPTP, L2TP, IPSec, OpenVPN, GRE, Wireguard, Zerotier etc.)

Serial port DTU function supporting

Support dial as required (audio, SMS, or data trigger)

Support UPnP, Firewall, Port forwarding, IP passthrough and Hotspot(Wi-Fi Portal) etc.

Stability

Use soft hardware watchdog and multi-level link detection , with capability of fault automatic diagnosis, automatic recovery, ensure equipment to work in stable and safe way

Multiple equipment self-checking mechanism

ESD protection for each port, prevent static shock

Wireless network signal indicator light, 3 levels to show the signal strength on-site

Remote management

Remote parameter configuration

Remote parameter backups

Remote restart and log query

Remote equipment upgrade

Equipment online monitoring

Functions

Down compatible LTE, WCDMA, HSPA, GPRS, EDGE

Support 5 x Gigabit LAN (10/100/1000M) or 4 x LAN + 1 x WAN

Provide standard RS232+RS485 interface, support serial DTU(data transmission unit) function

Support dual SIM

Support 2.4G + 5.8G WIFI6, IEEE802.11b/g/n and 802.11ax

Support DHCP, DDNS, firewall, NAT, and DMZ host etc.

Support ICMP, TCP, UDP, Telnet, SSH, API, FTP, HTTP, HTTPS protocols etc.

Advanced

Support Gigabit WAN, wire and wireless backup(optional)

Support GPS / Beidou orientation(optional)

Support USB internal storage extension, 8GB-256GB(optional)

Customization

Deeply customize intelligent routing system based on OpenWRT

Support customer secondary development

Run the OpenJDK development environment

Run the R language development environment

Working topology:

Specification:

Hardware		Software
CPU	Quad-core ARM Cortex-A53 at 1.8 GHz	Network protocols	PPPoE, TCP, UDP, DHCP, NAT, DNS, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc.
RAM	1Gb DDR3	VPN tunnels	IPsec, OpenVPN, GRE, WireGuard, Zerotier
Flash	Nor 32MB+Nand 256MB(can be extended)	Firewalls	DMZ, NAT, Filtering (IP/Domain name/MAC address), QoS
Cellular Interface		Remote management	Web, CLI, SMS
Number of antennas	6	Serial port protocols	Transparent, TCP Client/Server, UDP, Modbus RTU Gateway
Connector	SMA-K	Device Management
SIM	2 x SIM/UIM	Basic	Local or remote web browser(IE v8 or above) VLAN SNMP v2, v2c, v3
Ethernet Port
Number of ports	5(5 x LAN or 1 x WAN+4 x LAN)
	IEEE 802.3, IEEE 802.3u	Optional	M2M management platform CLI/Telnet command SSH configure MQTT
Serial Port
Number of ports	1 x RS-232 + 1 x RS-485 + 3 x I/O
Connector	1 x 8-pin 3.5 mm female socket
			TR069
Wi-Fi Interface		Physical Characteristics
Number of antennas	4(2 x Wi-Fi 2.4G+2 x Wi-Fi 5.8G)	Ingress protection	IP34
Connector	RP-SMA-K	Housing & Weight	Metal, 600 g
Standards	IEEE802.11 b/g/n/ax	Dimensions	179 x124 x 43 mm
Frequency bands	2.4 GHz + 5.8GHz	Operating temperature	-30 ~ +75 °C
Maximum Bandwidth	2.4G 600Mbps / 5G 1200Mbps	Storage temperature	-40 ~ +85 °C
Security	WEP, WPA, WPA2 encryption	Relative humidity	5 ~ 95% RH (non-condensing)

Power supply and consumption		Regulatory and Type Approvals
Connector	1 x 5.5*2.1mm DC	Standard	EN 300 328 v 1.7.1(2016-11) EN 301 489-1 EN 301 908-1 EN 55024:2015 EN 55032:2015 EN 61000-3-3:2008	EN 301 489-17 EN 301 489-52 EN 301 908-2/13 EN 60950-1 EN 61000-3-2 EN 62311:2008
Input voltage	12 ~ 32 V DC
Power consumption	Idle: 600mA@12 V Max: 750mA@12 V
Recommended power supply	12V DC/2 A power adapter
Others
Reset button	1 x RST
LED indicators	NET1, NET2, 1 x PWR, 1 x WLAN, 5 x LAN	Certificates
Watchdog	Built-in	Passed	CE RoHS CCC
Guarantee	One year
Customization	Support
