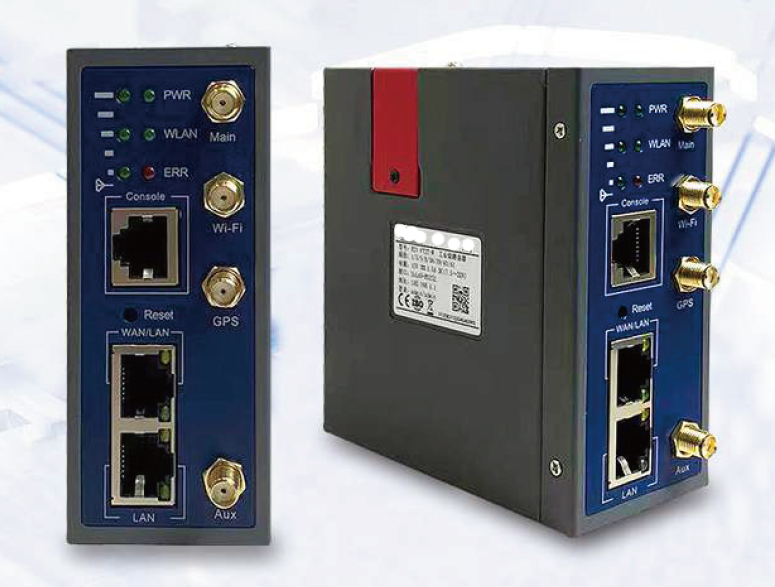

HOMTECS-H21 Industrial 4G 3G Dual SIM LTE Router DIN RAIL MOUNT

H21 4G 5G Redcap Router is a kind of internet of things wireless communication router, uses Sub6 / LTE mobile cellular network, to provide convenient and high speed network transmission function.

This series of product uses high performance MIPS industrial communication processor, flush bonding real-time operation system as software supporting platform. It provides secure, high speed, stable 4G wireless network, and provides 2 LAN, RS-485+RS-232, GPIO, Console, Dual SIM and Wi-Fi.

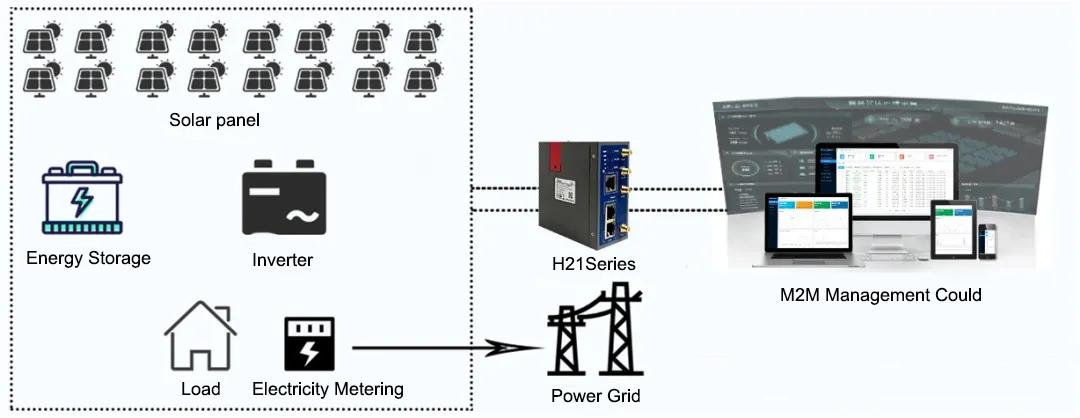

It can be used in finance, postal, smart power grids, smart transportation, environment monitor, fire protection monitor, security, water conservancy, public safety, advertising release, industrial control, earth quake monitor, meteorological watch, instrument monitor etc.

4G or 5G Redcap               2*LAN+2*Serial Port+DI/DO                 Watchdog       Multiple VPN Protocols

Industrial design

Use high performance industrial wireless module

Use high performance MIPS industrial communication processor

Support low power consumption, including sleep mode, timing on/off line mode and timing switch on/off mode

Use plate metal CRS shell, heat dissipation is good

Power source: 7.5V~32V DC(extended to be 36V)

Degree of protection: IP34(Max IP51)

Network characteristic

Port flow detection and link real time monitoring

Various VPN protocols (PPTP, L2TP, IPSec, OpenVPN, GRE, Wireguard, Zerotier etc.)

Serial port DTU function supporting

Support dial as required (audio, SMS, or data trigger)

Support UPnP, Firewall, Port forwarding, IP passthrough and Hotspot(Wi-Fi Portal) etc.

Stability

Use soft hardware watchdog and multi-level link detection , with capability of fault automatic diagnosis, automatic recovery, ensure equipment to work in stable and safe way

Multiple equipment self-checking mechanism

ESD protection for each port, prevent static shock

Wireless network signal indicator light, 3 levels to show the signal strength on-site

Remote management

Remote parameter configuration

Remote parameter backups

Remote restart and log query

Remote equipment upgrade

Equipment online monitoring

Functions

Down compatible LTE, WCDMA, HSPA, GPRS, EDGE

Support 2 x LAN (10/100M) or 1 x LAN + 1 x WAN

Provide standard RS232/485 interface, support serial DTU(data transmission unit) function

Support 2.4G WIFI, IEEE802.11b/g/n

Support wired and wireless network mutual backups

Support hardware WDT, provide anti-log off mechanism, ensure data terminal online forever

Support DHCP, DDNS, firewall, NAT, and DMZ host etc.

Support ICMP, TCP, UDP, Telnet, SSH, API, FTP, HTTP, HTTPS protocols etc.

Support Industrial SIM/UIM card design.

Support dual sim for failover or backup

Support base station and Wi-Fi hybrid positioning

Advanced

Support WAN, wire and wireless backup(optional)

Support GPS / Beidou orientation(optional)

Hardware

Software

Model

Frequency Bands

Country/

Region

Interface

Dual SIM

Wi-Fi

GPS

Package Contains
